planer stand

I recently aqcuired a new planer and built a rolling stand for it. Here's how it turned out:

Unfolded and empty

Folded and full, including storage and wedges

The planer is a DW735, which now has a Shelix head in it. I've got some more photos showing the details. of the stand and the setup, and how I got there.

I got plywood and some clear riftsawn construction lumber from the local home center.

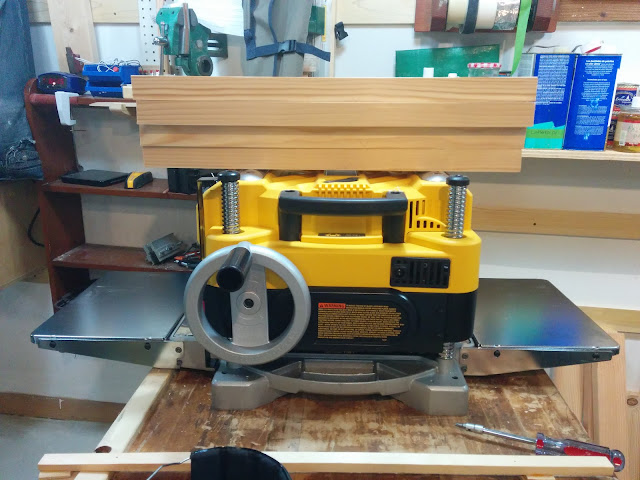

With the planer set up on another surface, the parts were milled to size.

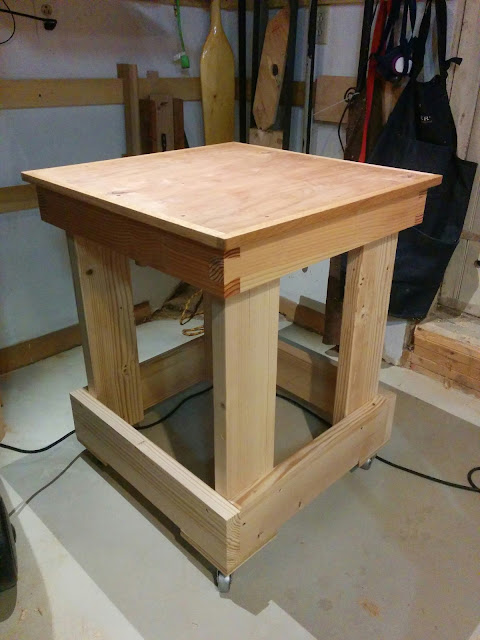

Here's the basic planer stand. the casters are on plywood triangles that are not easy to see. I hid many of the screws.
I eventually installed the Shelix head. Here you can see the reflection of the little carbide blades. I am  very satisfied.

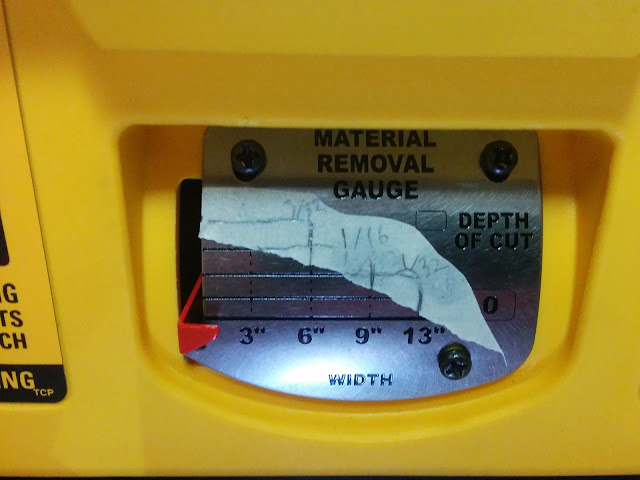

The Shelix head is a little smaller, apparently. Masking tape to the rescue.

Here's a dowel notched to hold the folding tables up.
Shelf in two sections. This should make it easy to remove, sweep, etc.
